Expert Quality, Made Affordable
Lightweight, accurate, ideal for medium & large sized objects

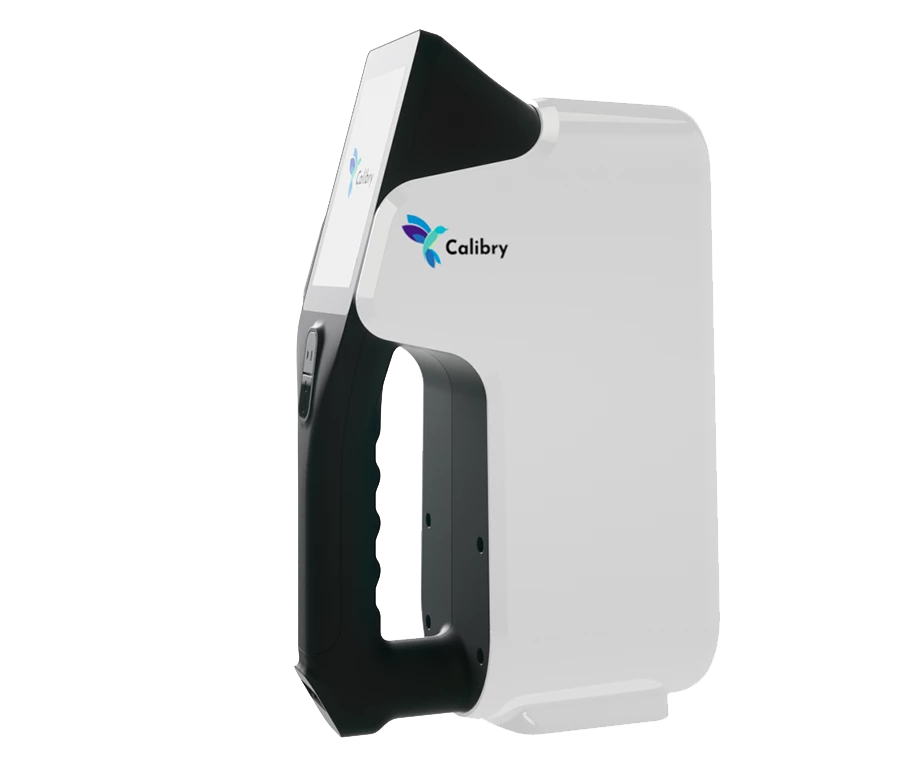

Calibry is a lightweight 3D scanner meant to capture medium and large objects (from 20cm to 10m in length). It was specifically designed to make professional quality available to engineers, medical professionals and educators.
The Professional and Easy to Use Calibry 3D Scanner
€4990 RRP ex vat, shipping and import duty
Designed to make scanning affordable and simple, Calibry achieves up to 0.6mm resolution, has a built-in texture camera, and can collect up to 3 million points per second. It guarantees users fast and accurate results (up to 0.1mm).
TECHNICAL SPECIFICATIONS
Accuracy: Up to 0.1 mm
Accuracy over distance: Up to 0.1 mm over 1 m
Point resolution: Up to 0.6 mm
Depth of view: 55-95 cm
Field of view:Min – 280 x 360 mm Max – 490 x 650 mm
Texture: Yes
Texture resolution: 2.3 MP
Light source: White LED
Frame Rate: 25-30 fps
Data Acquisition speed: 3M points/sec
Multi-core processing: Yes
Weight: 900 gr
Touchscreen: Yes, 4 in
Software: Yes, included in the price
Operating temperature: +5/+40C
Dimensions, in mm: 165 x 85 x 274
Benefits of Calibry
-
Scans historically-difficult objects like black/shiny/furry items and sharp edges
-
Lightweight and easy to use
-
Built-in touchscreen
-
Powerful, professional software included in the price of the scanner
-
Proprietary camera & brilliant texture
-
3 tracking modes: geometry, texture, markers
